Coach & Wagon Body Parts, plus Tail Lights

Tail Lamps

All these include a Red LED for either 5 volts or 12 volts.
Round lamps are approx. 12mm diameter x 16mm high.
Square lamps are approx. 12 x 12·5 x 16mm high.
Both types have a slot for mounting on a bracket. They are usually printed using white ABS.

The price for 7/8" scale Tail Lights is £6.30.


Tail lights can be supplied with an L19 Warm White LED for £1.00 extra, for use as headlights.
Here are the parts of a round lamp:



ND2 Round Lamp, for 5 volts     £4.60

ND3 Round Lamp, for 12 volts   £4.60



ND4 Square Lamp, for 5 volts     £4.60

ND5 Square Lamp, for 12 volts   £4.60


Body Parts



ND7 "Shell" style Coach Roof Vents – six   £3.20

Approx. 11mm dia., 8mm high.



ND8 "Torpedo" style Coach Roof Vents – six   £3.20

Approx. 13mm over "points" x 9mm., 7mm high.



ND15 GVT style Brake Van Steps – pair

Handed, for single or double-ended brake vans.
Can also be supplied with hangers equally spaced for fitting centrally, on request.


Lynton and Barnstaple coach lamp tops

ND69 L & B Style Lamp Tops   £6.50

6 lamp tops and 6 "plugs".
As used on Lynton and Barnstaple coaches.
Base is approx. 20mm diameter, height approx. 12mm.

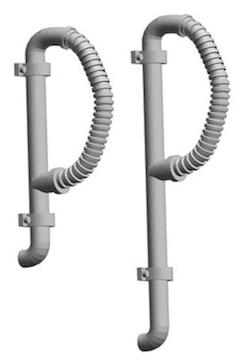

Coach Vacuum Pipes

ND87 Coach/Van Vacuum Pipes–short    £3.20 (7/8" £4.80)

One pair of dummy vacuum pipes
Height approx. 33mm, from top to bottom of curved part of pipe.

ND88 Coach/Van Vacuum Pipes–tall   £3.90 (7/8" £5.95)

One pair of dummy vacuum pipes.
Height approx. 46·5mm, from top to bottom of curved part of pipe.


  Wagon and Van Strapping etc.




wagon angle plates and brackets

ND50 22 Small Angle Plates   £3.50

Assorted T, L and diagonal plates.

 The bolt head spacing on ND51-ND53 can be supplied to your spacing on request.
Longer lengths can also be supplied (at extra cost) up to 200mm.


wagon tee shaped stanchions

ND51 T-section Stanchions (4)   £3.50

With bolt head detail. Approx. 94mm long x 5·3mm wide.



wagon L shaped stanchions

ND52 L-section Stanchions (4)   £3.50

With bolt head detail. Approx. 94mm long x 5·3mm wide.



wagon tee shaped stanchions

ND53 Flat Strapping (6)   £3.50

2 "J" ended pieces and 4 straight pieces. With rivet detail. Approx. 94mm long








ND54-ND56 below, have six hinge plates and include 4 end stanchions.


2 plank wagon strapping and stanchions

ND54 Set of strapping   £4.60

For 2 plank dropside wagons. 20mm height above hinge.



3 plank wagon strapping and stanchions

ND55 Set of strapping 25mm   £4.60

For 3 plank dropside wagons. 25mm height above hinge.



4 plank wagon strapping and stanchions

ND56 Set of strapping 33mm   £4.60

For 4 plank dropside wagons. 33mm height above hinge.



4 plank wagon strapping and stanchions

ND66 T-section Stanchions   £3.50

For wagon ends or sides. 4 lengths x 60mm.



4 plank wagon strapping and stanchions

ND74 U-section Stanchions   £3.50

For wagon ends or sides. Regular bolt head spacing. 4 lengths x 94mm.



4 plank wagon strapping and stanchions

ND75 U-section Stanchions   £3.50

For wagon ends or sides. "Paired" bolt head spacing. 4 lengths x 94mm.



4 plank wagon strapping and stanchions

ND76 T-section Stanchions   £3.50

For wagon ends or sides. 4 lengths x 110mm.



2 plank wagon door hinges

ND86 Pair of End Door Hinges   £2.50

Dummy hinges for 2 plank end door wagons used on the Corris Railway. Approx. 21mm wide x 26·5mm high (each "half").

Wagon Solebar plates

ND89 Solebar Brackets and Plates   £3.90

Two sets of "washer plates", end brackets and number plate (blank). Enough for two solebars – one wagon.
