CA5 LOCO CHASSIS

0-6-0/0-4-0 Chassis £11.15

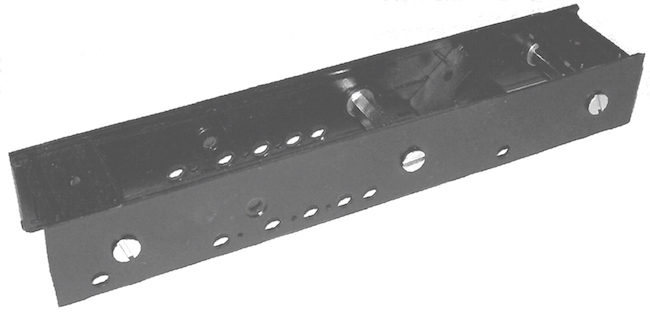

loco chassis

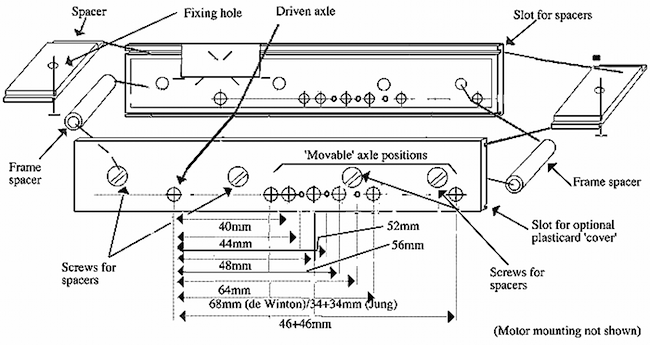

loco chassis drawing





The chassis consists of two plastic sideframes and three metal spacers, motor mounting plate, two movable pieces for body fixing. The motor (not supplied) can be fitted in one of 3 positions (1 vertical, 2 angled). Motors CA2 & CA15 below are suitable. Note: the motor fixing-plate holes will need modifying for CA15 motors, as they are closer together on this motor. The non-powered axle positions provide a choice of wheelbases, suitable for a variety of common steam & diesel prototypes. It is suggested that a "cosmetic" plasticard overlay of the shape and length suitable for the chosen prototype, is added to the sides of the chassis behind the wheels. Includes six x ⅛" brass bearings; requires motor / wheels / gears to complete.
The plastic sideframes are 139mm long x 20mm deep. The chassis is 25·5mm wide over the frames.
2mm axle bearings can supplied instead of ⅛" ones, if requested when ordering.

GEAR BOXES

        Motor and gearbox

These are 3D printed in ABS (colour may vary), and include CA33 gears (details under GEARS below), two ⅛" brass bearings, 2 motor fixing screws and CA2 Large or CA15 Small motor (details under MOTORS below). The gearbox dimensions are: 22·5mm wide, 25mm high and 15mm front to back. The motor shaft to axle centres will be slightly different to those previouly supplied: CA31/CA36 gears are slightly larger, and CA33/CA35 are slighly smaller. Ribs in the box locate the gear under the worm. There are "blind" holes in the back & base for mounting screws (not supplied).
The gearbox will be similar to that shown here, but modified to suit the new-style gears. The "axle" shown in the picture is not included.
** See note re availability of gears below in GEARS section. **
** Higher postage rate applies to CD1 – CD8 gearboxes. **

CD1 Large Motor, 30:1 Gears     £22.50

CD2 Large Motor, 40:1 Gears     £22.50

CD3 Small Motor, 30:1 Gears     £20.50

CD4 Small Motor, 40:1 Gears     £20.50


CD6 & CD8 include CA21 gears for 2mm axles (details under GEARS below).
ONLY ONE OF EITHER CD6 OR CD8 AVAILABLE, as we only have one set of CA21 in stock.

CD6 Large Motor, 40:1 Gears     £20.00

CD8 Small Motor, 40:1 Gears     £17.55

CD13 Gearbox only, narrow type     £9.30

As CD1, but narrower. 21·5 wide x 17 x 33·4mm long.

CD14 For 42:1 plastic gears     £10.40

As CD1, but larger to suit the gears. 17 wide x 27· x 14·8mm.


GEARBOXES FOR IP ENGINEERING CHASSIS

3 gearboxes





A replacement for the one supplied with the IP Engineering Chassis. 17·5 x 15 x 37·5mm high, except CD12, which is 34·1mm high. It fits between the bosses on IP wheels.
Includes 2 brass bearings for ⅛" axles & motor (CA24) fixing screws. CD10/11 fixing lugs can be attached to the chassis cross-member. For suitable motor and gears, see CA24, and CA35/CA26 below.
The gearbox will be similar to that shown here, but modified to suit the new-style gears.



CD9 Side fixing lugs      £9.30

CD10 Single end fixing lug  £9.30

CD11 Twin end fixing lugs  £9.30

The lugs are "outside" the gearbox width on CD11.

CD12 Side fixing lugs     £9.30

As CD9, but with extended lugs to enable use of the IP gearbox horizontal fixing rod.
Axle centre to fixing rod centre: 24mm.

Variations:

CD16 Twin End Lugs     £9.300

Short version of CD11, allows motor to be horizontal under footplate. 27·5 (over lugs) x 16mm x 27·5mm.

GEARS





When choosing gears, the track speed of the loco will depend on the motor speed
– which will be affected by the voltage supplied and the weight of the loco/train;
and the size of the wheels – smaller wheels = lower speed, but more "power"; larger wheels = higher speed, less power.
Of the types we stock, 40:1 gears will give the greatest reduction in rotation of the axles, and therefore more suited to larger wheel sizes.
16:1 or 20:1 could be used on locos with small wheels, e.g. "bow-framed" Simplex.



PLEASE NOTE: We do not have any CA1, CA3, CA4, CA25 or CA26 in stock, so the listing of these has been removed.

We now have some brass gears from China. Current stock (27/8/26): four sets of CA31, and eight sets of CA33.

These have brass worms, which should be kept clean and lubricated.





They are supplied to us with 3mm gear bores, and can be ordered like that for 3mm axles, on request.

CA31 40:1 Gears (Brass) £12.00

  Brass worm for 2mm motor shaft, brass gear for ⅛" axle. Motor shaft to axle centres distance is 8·7mm.
They are held on the shaft by 2mm grub screws. Unlike the previous gears, the grub screws have an Allen key socket, and a suitable key will be supplied with each order.

CA33 30:1 Gears (Brass) £12.00

  Brass worm for 2mm motor shaft, brass gear for ⅛" axle. Motor shaft to axle centres distance is 7·2mm.
They are held on the shaft by 2mm grub screws. Unlike the previous gears, the grub screws have an Allen key socket, and a suitable key will be supplied with each order.
Photo shows CA33 Gears >

Coach End Fence and gates

CA35 30:1 Gears (Brass) £13.50

  Brass worm for 2·3mm motor shaft, brass gear for ⅛" axle. Other details as CA33.

CA36 40:1 Gears (Brass) £13.50

  Brass worm for 2·3mm motor shaft, brass gear for ⅛" axle. Other details as CA33.

CA22 Grub Screw for CA33 & CA35 Gears 75p

  Stainless steel grub screw for CA33 & CA35 gears or worm. 2mm thread x 4mm long –
  these are longer than the ones supplied with the gears (which are not stainless steel). Requires 0.89mm Allen key.

CA21 40:1 Gears (Metal) £8.60

  Steel worm for 2mm motor shaft, brass gear for 2mm axle. ONLY ONE SET REMAINING.

CA9   16:1 Gears (Plastic) £1.00

  Two worms and two gears. 2mm bore motor shaft and axle.

CA9 16:1 Gears

CA16 42:1 Gears £1.00

  Two worms and two gears. 2mm bore motor shaft and axle. Worms as CA9 picture.


CA16 42:1 Gears





The plastic gears can be carefully drilled out for ⅛" axles, preferably using a pillar drill or lathe, and turning the chuck by hand – or a very slow motor speed. We do not recommended attempting to enlarge the bore of the brass gears or worms.





MOTORS

The motors listed below (except CA24) can all be run on 1½ volts to 4½ volts,
although above 3 volts they will probably run too fast for the usual speed of narrow gauge locomotives.
L = length over body, excluding the boss round the shaft.
D = diameter over body.
W = width across flat part (CA18).
** Higher postage rate applies to all motors, except CA18 **

** PLEASE NOTE: CA17 Medium Motor has been discontinued.

CA2 "Large" Motor, 2mm shaft £3.75

12mm x 2mm shaft, L 30·5mm, D 24·1mm
The price of these has had to be increased, as our previous supplier for many years, has stopped stocking them, and ones from an alternative source are more expensive.

 motors

CA15 Smaller Round Motor, 2mm shaft £1.60

10mm x 2mm shaft, L 25mm, D 21mm
Smaller diameter – so could be fitted horizontally between the frames in our chassis kit.

 CA15 Motor

CA18 Small flat-sided Motor, 2mm shaft £1.40

9·4mm x 2mm shaft, L 25mm, D 20mm, W 15·1mm. See picture under CA2 above.

CA24 "385" type Motor £5.90

9-12 volt, L 38mm, D 27·5mm. 2·3mm shaft.

 ca24 Motor
